BOP Handling Systems
Pneumatic BOP Hoist FYQ-50

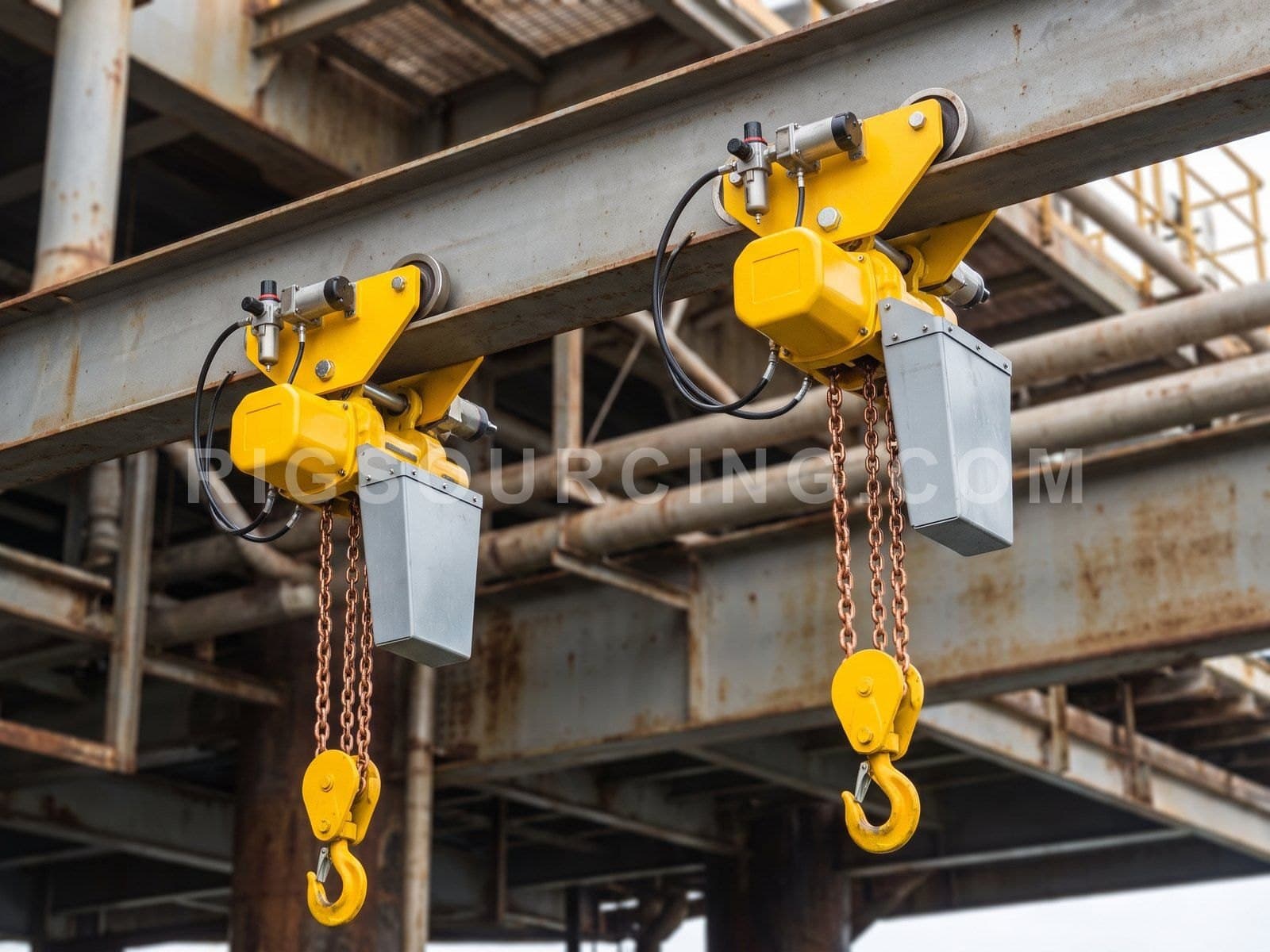

Pneumatic BOP handling system for lifting, travelling, installing and removing the BOP. Each set is two air-driven trolleys on the I-beam runway, each carrying a self-locking 25 t pneumatic chain hoist, controlled together or individually from the control boxes. Two sets give a 4 × 25 t arrangement. Where API certification is required, a hydraulic cylinder and wire rope BOP handling system is available, manufactured under API Spec 7K.
Price on Request
Made to order in single sets or pairs, with worldwide shipping.
Request a QuoteTechnical Parameters
Standard FYQ-50 configuration. Runway beam size, height of lift, controls and coatings can be adapted to your rig.
| Model | FYQ-50 (FYQ-50HF-00) |
|---|---|
| Rated Lifting Load | 2 × 250 kN = 500 kN (two hoists per set) |
| Lifting Stroke | 9 m |
| Trolley Travel | 10 m |
| Lifting Speed | 0.8 m/min |
| Travel Speed | 8 m/min |
| Air Supply Pressure | 0.6–0.85 MPa (6–8.5 bar) |
| Air Consumption | 16 m³/min lifting, 8 m³/min travelling |
| Load Chain | 4 × 18 × 54 mm, Grade 80 |
| Runway Beam | I-beam, 360 mm flange as standard; other sizes on request |
| Hoists | Self-locking pneumatic chain blocks with brakes |
| Drive | Pneumatic |
| Certification | ISO 9001 manufacture; not API monogrammed |
| API 7K Alternative | Hydraulic cylinder and wire rope BOP handling system |
Hazardous area and offshore options
ATEX / IECEx certification, overload protection, emergency stop, offshore protection and marine paint systems are confirmed per order. Tell us your zone classification and coating specification when enquiring.
Information We Need to Quote
Include the following in your enquiry and we'll come back with a quotation.
- 1Number of hoist sets
- 2Safe working load per hook and in total
- 3Height of lift
- 4Runway beam flange width and thickness
- 5Air supply pressure and connection size (or hydraulic supply)
- 6Hazardous area classification (ATEX / IECEx zone)
- 7Control type and pendant length
- 8Installation location (e.g. cantilever, upper deck)
- 9Paint or coating specification
Example: offshore BOP hoist enquiry
- Configuration
- 2 sets (4 × 25 t)
- SWL
- 50 t (110,000 lb) per set
- Height of lift
- 9 m (30 ft)
- Beam flange
- 360 mm wide, max 65 mm thick
- Air supply
- 6 bar
- Hazardous area
- ATEX Zone 2
- Location
- Cantilever, upper deck
